Advantages
Light weight
One man can install
Durable
Cut From Chromium Carbide Overlay Plate
Ideal For High Wear Area’s

Applications
Loader Buckets
On the outside sides of the buckets
On top of the adapters behind the teeth. Between the adapters .
On the Front leading edges of both sides of the vertical plates coming up from the lip or cutting edge
Back-Hoe Buckets / Dragline Buckets
On the adapters, between the adapters, (Basically same applications as above loader buckets).

Chutes (quick fix at transfer points)
On top of Grizzly Bars.

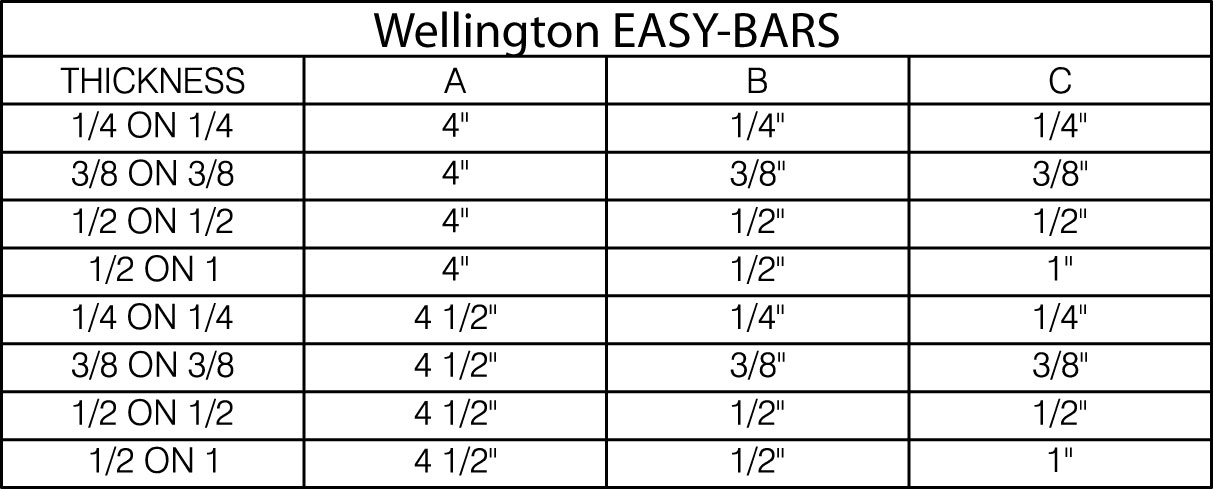

1/4 ON 1/4

4”

6”

1/4”

1/4”

3/8 ON 3/8

4”

6”

3/8”

3/8”

1/2 ON 1/2

4”

6”

1/2”

1/2”

1/2 ON 1

4”

6”

1/2”

1”
